Ultra high precision flux-gate current sensor M series

DXE4500-M12/61

Type: DXE4500-M12/61 Range: ±5400A Accuracy: 0.001% Working voltage:±22~±26V Linearity:5ppm Bandwidth:100KHz2 Output: ±1500mA Measuring resistance: 1~2Ω…

Read MoreDXE4500-M12/61

DXE2000-M9/61

Type: DXE2000-M9/61 Range: ±2400A Accuracy: 0.001% Working voltage:±22~±26V Linearity:5ppm Bandwidth:100KHz Output: ±800mA Measuring resistance: 2~3Ω…

Read MoreDXE2000-M9/61

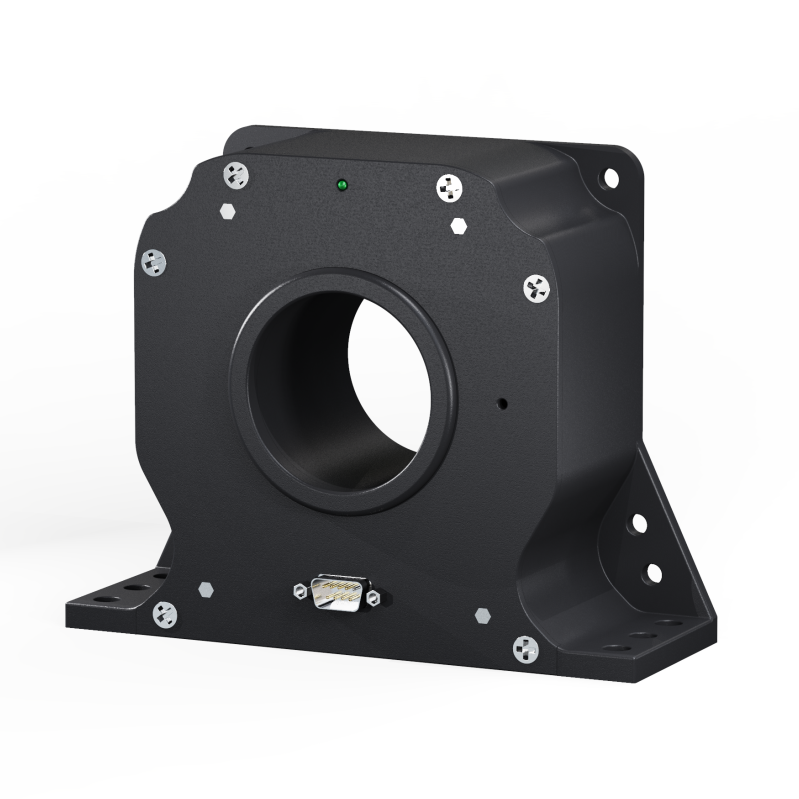

DXE2000-M6/61

Type: DXE2000-M6/61 Range: ±2200A Accuracy: 0.001% Working voltage:±14~±16V Linearity:5ppm Bandwidth:100KHz Output: ±800mA Measuring resistance: 3~4Ω…

Read MoreDXE2000-M6/61

DXE1500-M6/61

Type: DXE1500-M6/61 Range: ±1800A Accuracy: 0.001% Working voltage:±22~±26V Linearity:5ppm Bandwidth:100KHz Output: ±600mA Measuring resistance: 3~5Ω…

Read MoreDXE1500-M6/61

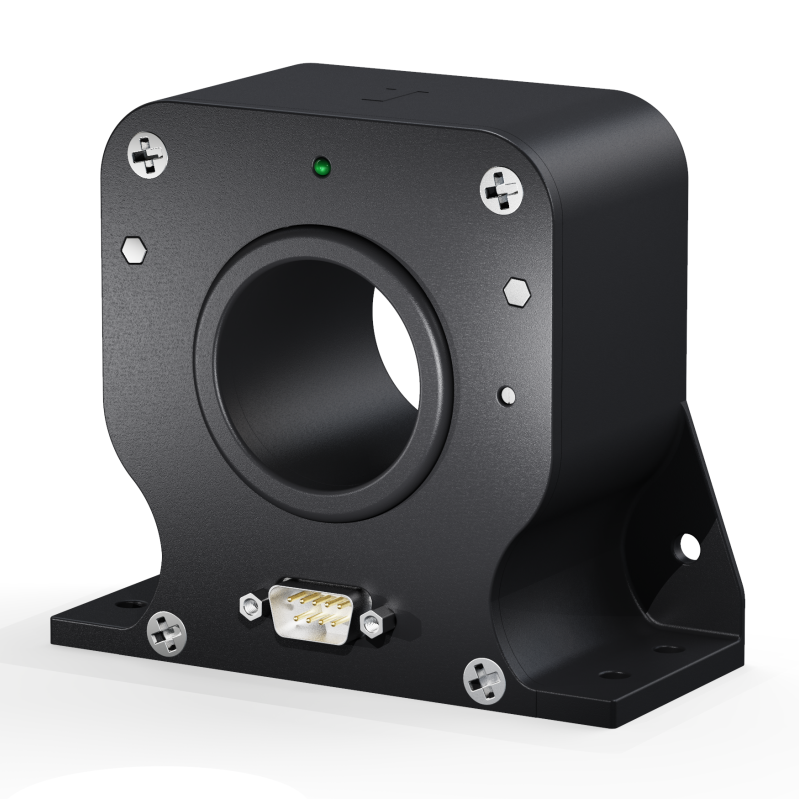

DXE1500-M4/61

Type: DXE1500-M4/61 Range: ±1600A Accuracy: 0.001% Working voltage:±22~±26V Linearity:2ppm Bandwidth:100KHz Output: ±600mA Measuring resistance: 3~5Ω…

Read MoreDXE1500-M4/61

DXE1200-M4/61

Type: DXE1200-M4/61 Range: ±1500A Accuracy: 0.001% Working voltage:±22~±26V Linearity:5ppm Bandwidth:100KHz Output: ±480mA Measuring resistance: 4~6Ω…

Read MoreDXE1200-M4/61

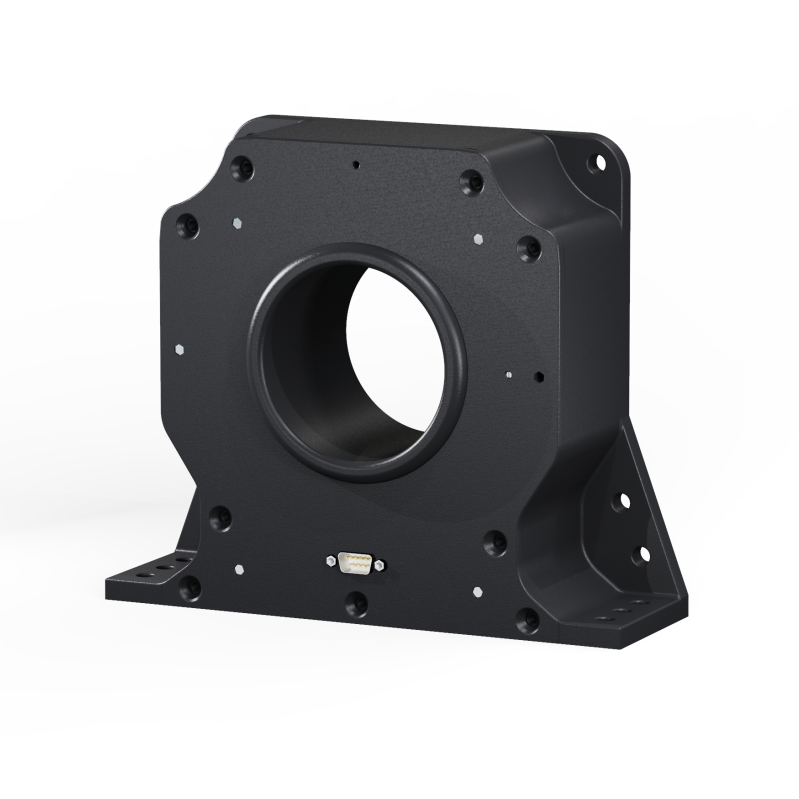

DXE1000-M9/61

Type: DXE1000-M9/61 Range: ±1200A Accuracy: 0.001% Working voltage:±22~±26V Linearity:5ppm Bandwidth:100KHz Output: ±500mA Measuring resistance: 4~8Ω…

Read MoreDXE1000-M9/61
