Large aperture current sensor series
DXE7500-R1/45
Type: DXE7500-R1/45 Range: ±10000A Working voltage:±36V Accuracy: 0.5% Output: ±1.5A Linearity:0.5% Bandwidth:0~20KHz Measuring resistance: ＜2Ω…

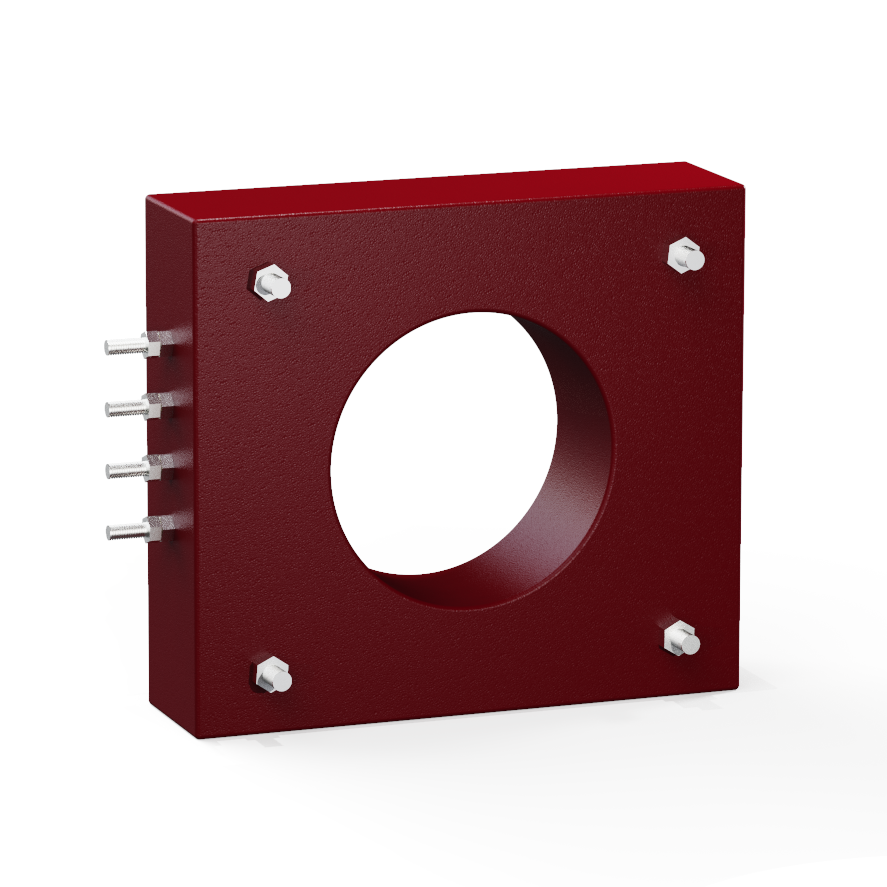

DXE4500-R2/51
Type: DXE4500-R2/51 Range:±4800A Working voltage:±22V~±26Vdc Accuracy:50ppm Output: ±1500mA Linearity:50ppm Bandwidth:DC~100KHz Measuring resistance: 1~2Ω Aperture:φ120mm

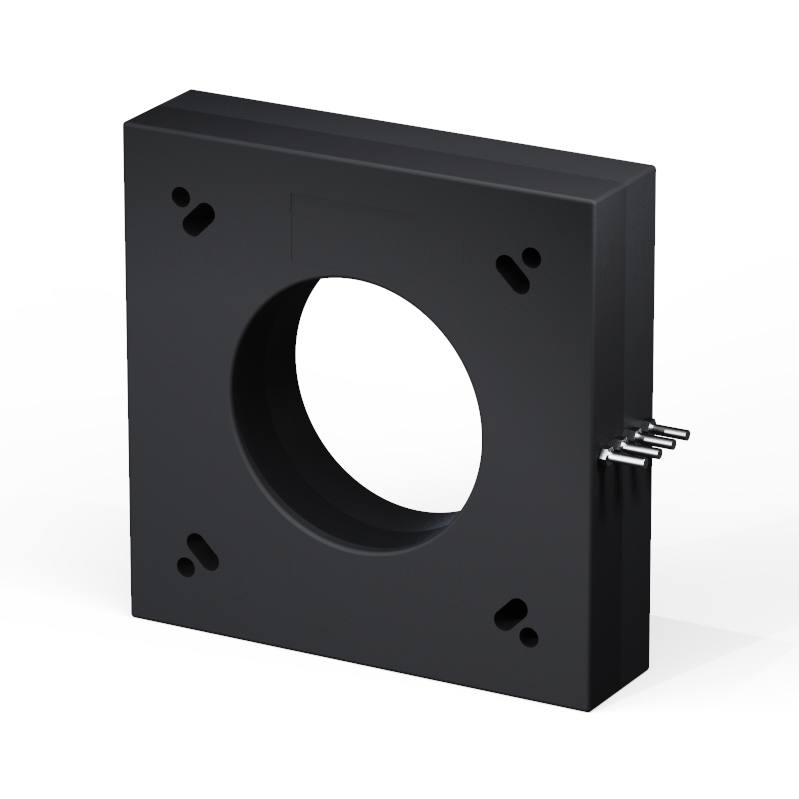

DXE4500-R1/52
Type: DXE4500-R1/52 Range: ±4800A Working voltage: ±22~±26V Accuracy: 0.02% Output: ±1500mA Linearity:50ppm Bandwidth: 100KHz Measuring…

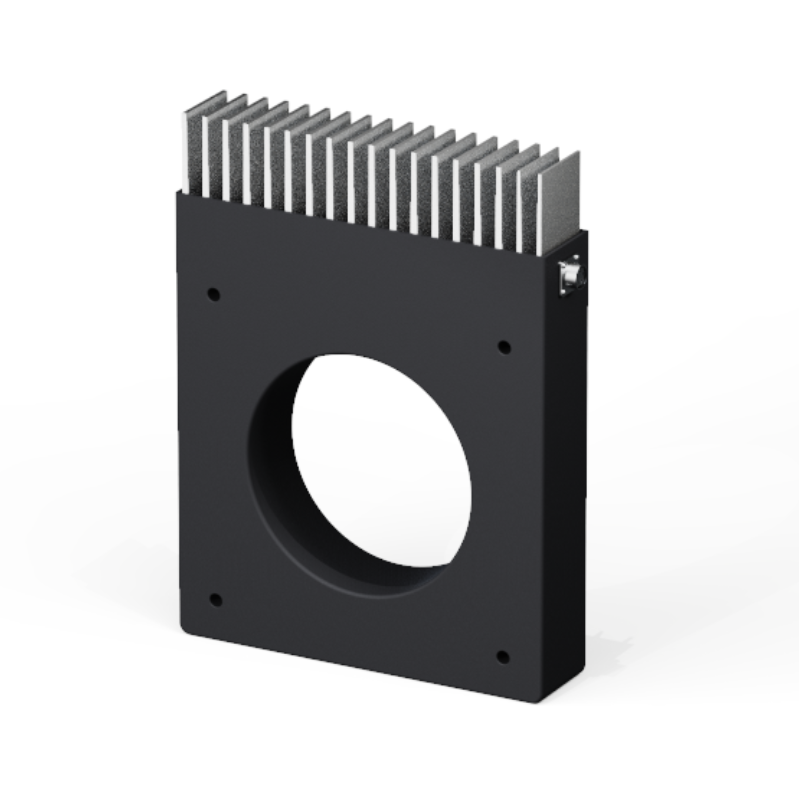

DXE3000-R11/52
Type: DXE3000-R11/52 Range:±4500A Working voltage:±22V~±26Vdc Accuracy:0.02% Output: ±1200mA Linearity:100ppm Bandwidth:0~100KHz Measuring resistance: 2~3Ω Aperture:φ200mm
DXE3000-R2/200mA
Type: DXE3000-R2/200mA Range: DC±3300A or AC 3300A Working voltage:±24VDC(±5%) Accuracy: 0.3%~0.4% Output: DC±200mA or AC…
DXE2000-R2-50ppm
Type: DXE2000-R2-50ppm Range: ±3000A Working voltage: ±15V~±24Vdc Accuracy: 50ppm Output: 400mA Linearity: 100ppm Bandwidth: DC~10KHz…
DXE2000-R2/200mA
Type: DXE2000-R2/200mA Range: DC±2200A or AC 2200A Working voltage:±24VDC(±5%) Accuracy: 0.3%~0.4% Output: DC±200mA or AC…
