Flux-gate current sensor R series

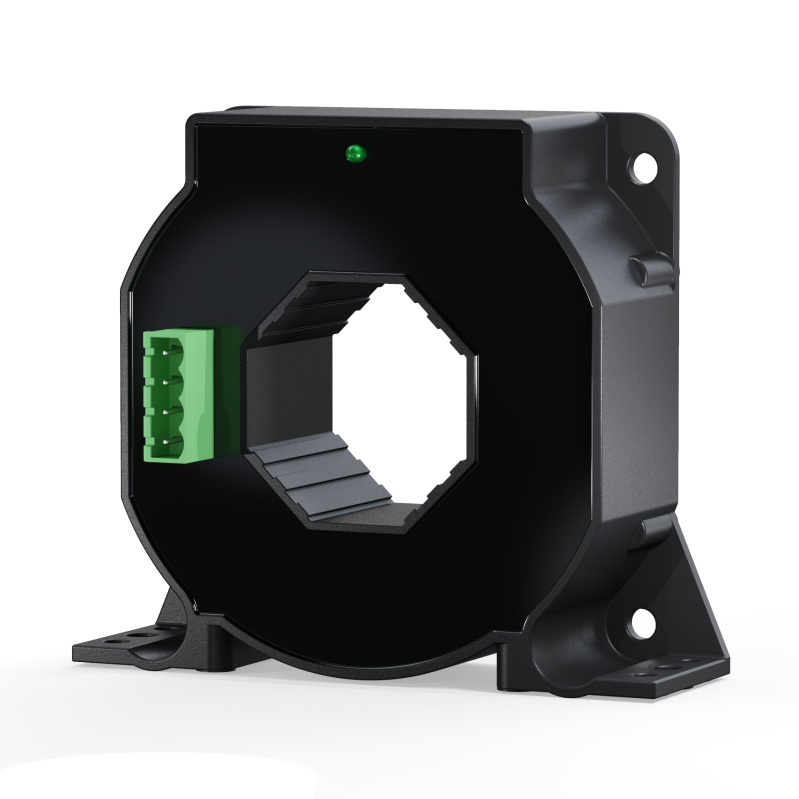

Type: DXE200-R5-G Range: ±300A Working voltage: ±15~±24VDC Accuracy: 0.02% Output: 100mA Linearity:100ppm Bandwidth:DC~100KHz Aperture:about φ39.5mm

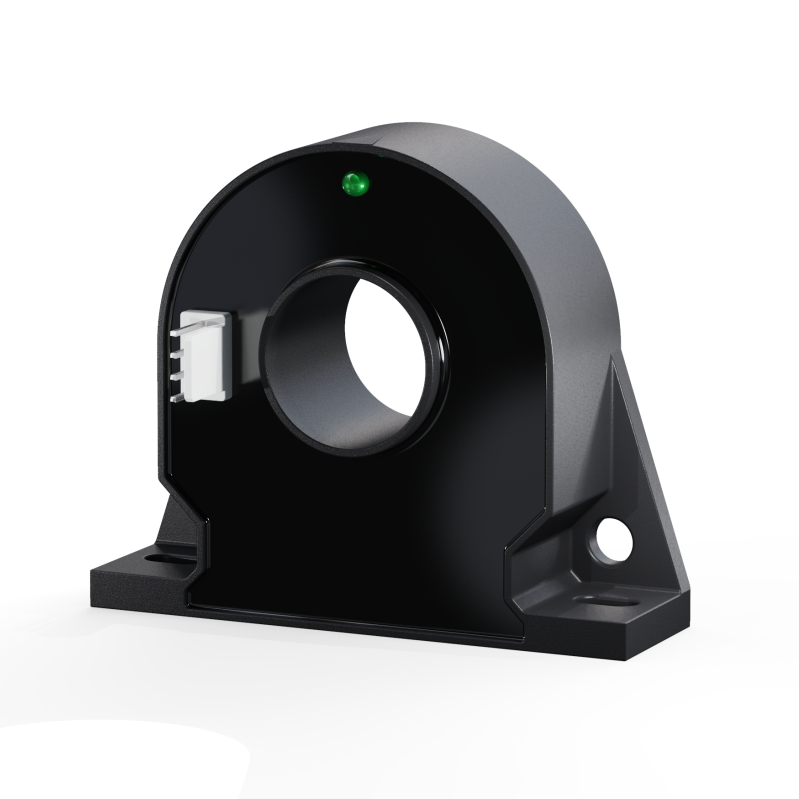

Type: DXE100-R7/52-E Range: ±150A Working voltage: ±11~±16V Accuracy: 0.02% Output: 100mA Linearity:50ppm Bandwidth: 100KHz Measuring…

Type: DXE100-R7/51 Range: ±110A Working voltage: ±14~±16V Accuracy: 0.01% Output: ±500mA Linearity:50ppm Bandwidth: 100KHz Measuring…

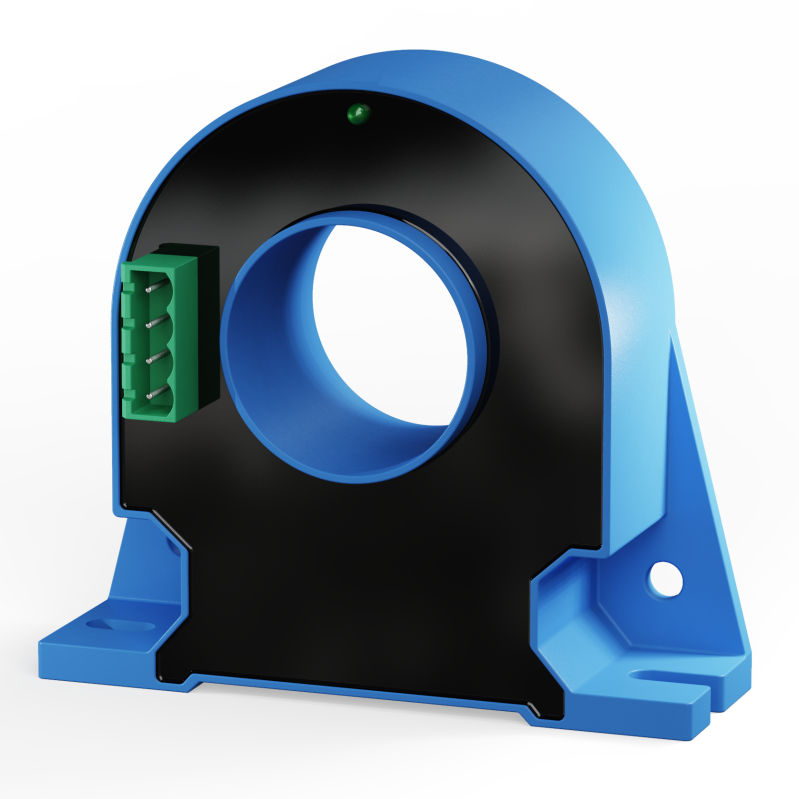

Type: DXE100-R6-G Range: ±150A Working voltage: ±15~±18VDC Accuracy: 0.02% Output: 100mA Linearity:100ppm Bandwidth:DC~150KHz Aperture:φ35mm

Type: DXE100mA-R7-5V Range: ±110mA Working voltage: ±11~±15V Accuracy: 0.5% Output: ±5V Linearity:100ppm Bandwidth:20KHz Pull downresistance:…

Type: DXE50-R7-ZY Range: 50A Working voltage: ±24VDC Accuracy: 1% Linearity: 1% Output: 4-20mA Bandwidth: 0~2KHz…

Type: DXE30mA-R7-G Range: ±40mA Working voltage: ±12~±15VDC Output: ±5V Accuracy: 1% Linearity: 1% Bandwidth: DC~100KHz…

Type: DXE30mA-R5-G Range: ±30mA Working voltage: ±12V Accuracy: 1% Output: 10V Linearity: 1% Bandwidth: DC~10KHz…
